Crafting an Image Carousel with Televo

This documentation delves into the creation of an image carousel component within the Televo framework, designed to enhance mobile applications by showcasing a series of images in an engaging, scrollable format. The carousel is built using Televo's JSON-configurable UI components, focusing on visual appeal and user interaction.

Overview​

An image carousel is an effective UI component for displaying multiple images in a confined space, allowing users to browse through them either manually or automatically. It's particularly useful for highlighting product images, portfolios, or featured articles.

Key Features​

  • Sequential Image Display: Presents images in a sequence, with the ability to navigate back and forth.
  • Auto-Scroll: Automatically transitions between images after a set interval, facilitating a hands-free viewing experience.
  • Customizable Appearance: Supports adjustments to image height, corner radius, and indicator styles to match the application's design language.
  • Interaction Indicators: Includes visual cues that indicate the current image and the total number of images in the carousel.

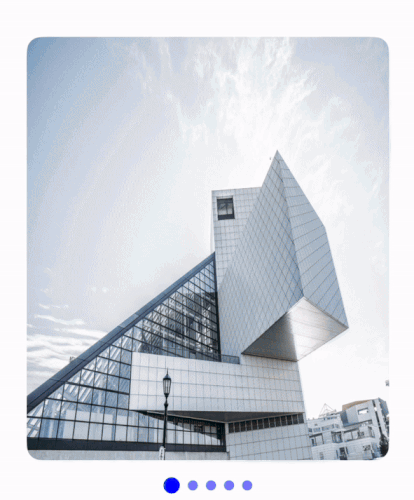

Description of the image

Component Structure​

The image carousel component is encapsulated within an imageCarousel type, containing an array of image URLs and a collection of style properties to customize its appearance and behavior.

JSON Structure Overview​

{
    "type": "imageCarousel",
    "data": {
        "images": [
            "https://images.unsplash.com/photo-1487958449943-2429e8be8625?q=80&w=2070&auto=format&fit=crop&ixlib=rb-4.0.3&ixid=M3wxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8fA%3D%3D",
            "https://images.unsplash.com/photo-1483366774565-c783b9f70e2c?q=80&w=2070&auto=format&fit=crop&ixlib=rb-4.0.3&ixid=M3wxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8fA%3D%3D",
            "https://images.unsplash.com/photo-1448630360428-65456885c650?q=80&w=2067&auto=format&fit=crop&ixlib=rb-4.0.3&ixid=M3wxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8fA%3D%3D",
            "https://images.unsplash.com/photo-1515263487990-61b07816b324?q=80&w=2070&auto=format&fit=crop&ixlib=rb-4.0.3&ixid=M3wxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8fA%3D%3D",
            "https://images.unsplash.com/photo-1523274158540-2aa98c15ec26?q=80&w=1974&auto=format&fit=crop&ixlib=rb-4.0.3&ixid=M3wxMjA3fDB8MHxwaG90by1wYWdlfHx8fGVufDB8fHx8fA%3D%3D"
        ]
    },
    "style": {
        "imageHeight": 350,
        "cornerRadius": 12,
        "autoScroll": true,
        "autoScrollTimer": 2,
        "indicatorColor": "0000ff",
        "selectedIndicatorSize": 16,
        "unselectedIndicatorSize": 10,
        "indicatorOffset": 60,
    }
}

Detailed Component Breakdown​

Images​

The images array within the data object contains URLs pointing to the images to be displayed in the carousel. These images are fetched and presented in the order they appear in the array.

"data": {
  "images": [...]
}

Style Customizations​

  • ImageHeight: Defines the height of the images within the carousel, ensuring they fit well within the component's layout.

  • CornerRadius: Applies rounding to the corners of the images, contributing to a softer, more polished appearance.

  • AutoScroll: Enables or disables the automatic scrolling feature of the carousel, allowing for a dynamic or static presentation.

  • AutoScrollTimer: Specifies the interval (in seconds) between automatic transitions, controlling the pace of the auto-scroll feature.

  • IndicatorColor: Sets the color of the navigation indicators, enhancing visibility against various backgrounds.

  • SelectedIndicatorSize and UnselectedIndicatorSize: Determine the size of the indicators, differentiating the currently viewed image from others.

  • IndicatorOffset: Adjusts the position of the indicators relative to the bottom of the carousel, providing flexibility in layout design.

Enhancing User Interaction​

The image carousel's interactivity is primarily managed through its auto-scroll capability and navigation indicators. These features ensure that users can both passively enjoy the carousel and actively engage with it, controlling the flow of images.

Customization and Flexibility​

The JSON structure offers extensive customization options, from visual aspects like corner radius and indicator color to functional behaviors like auto-scroll timing. These settings allow developers to tailor the carousel to the specific needs and design preferences of their application.

Conclusion​

The image carousel component within the Televo framework offers a visually appealing and interactive way to display multiple images. Its customizable design and auto-scroll functionality make it an ideal choice for applications aiming to showcase visual content effectively. Through careful configuration of its properties, developers can create a user-friendly image carousel that enhances the visual experience of their applications, engaging users with dynamic content presentation.
